axonometric projection Questions

Leaving Certificate • Design & Communication Graphics • Ordinary

Total Questions

9

With Solutions

9

Mock Papers

Soon...

Year Range

2013-2024

All Questions (9)

2024 - Section B - Question 2

2024Section Section BQ2

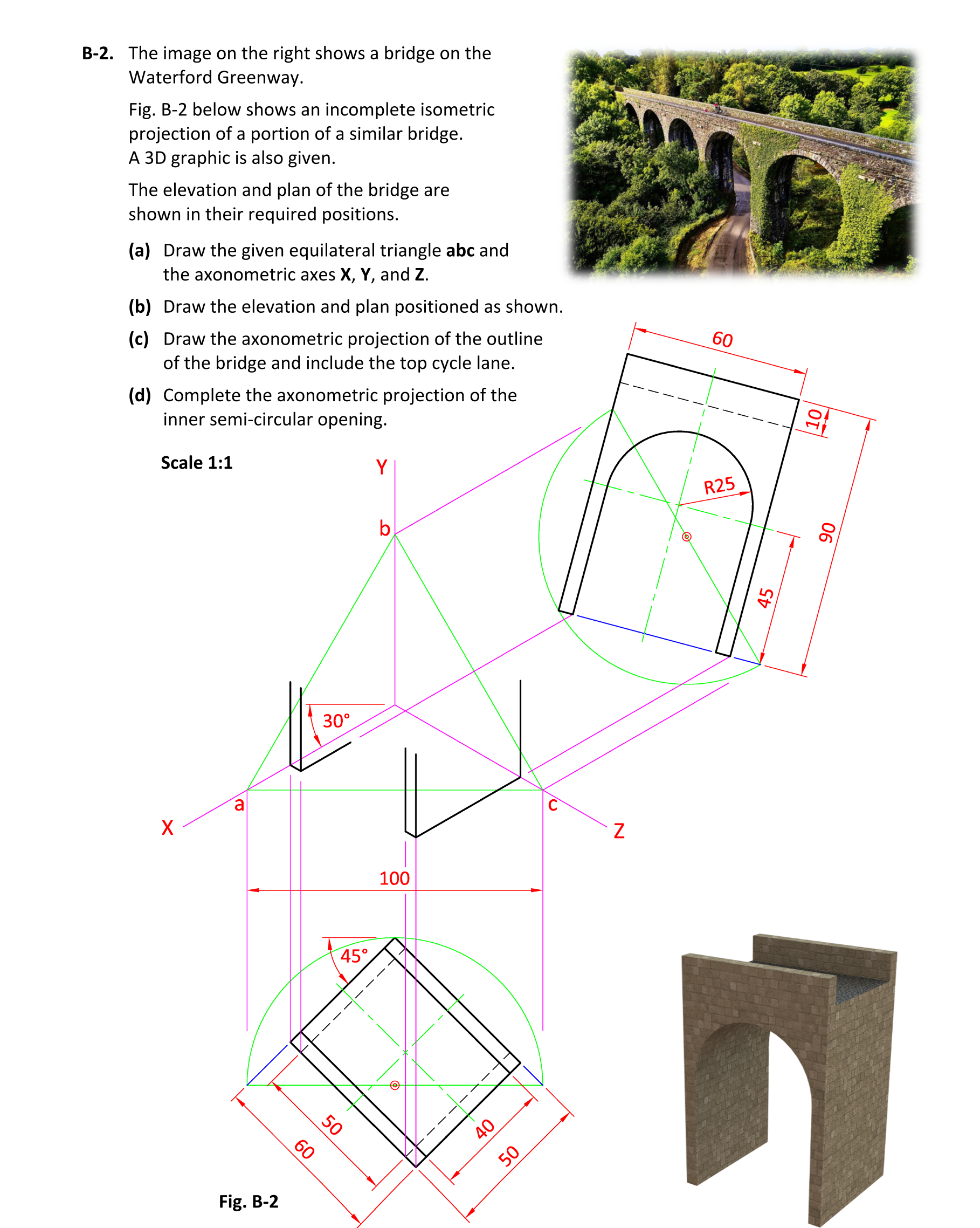

Question ec8f88c7-8c2a-4fb6-bf28-d65a44f9d0ec

Marking Scheme

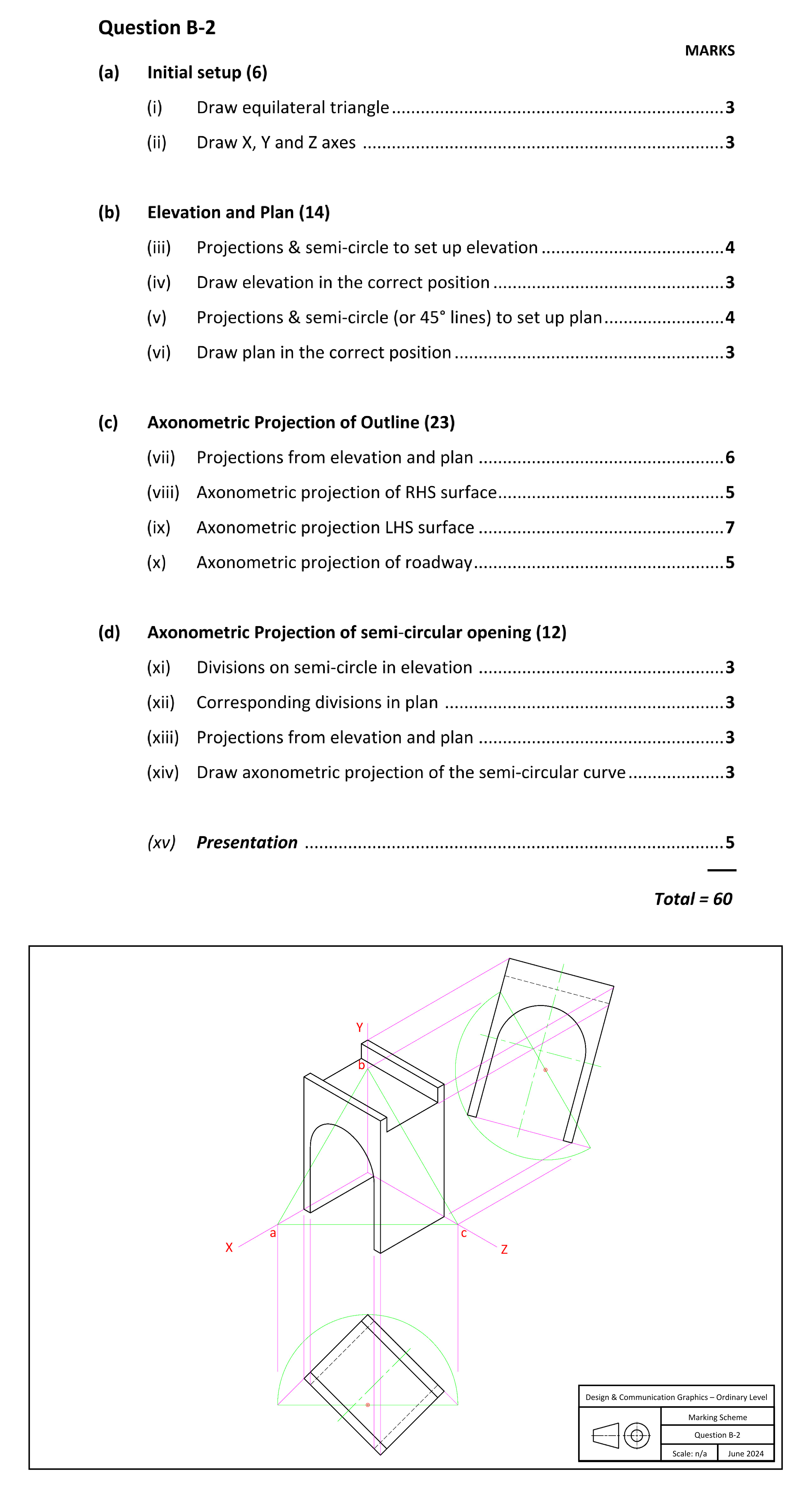

Solution for ec8f88c7-8c2a-4fb6-bf28-d65a44f9d0ec

2023 - Section B & C - Section B - Question 3

2023Section Section BQ3

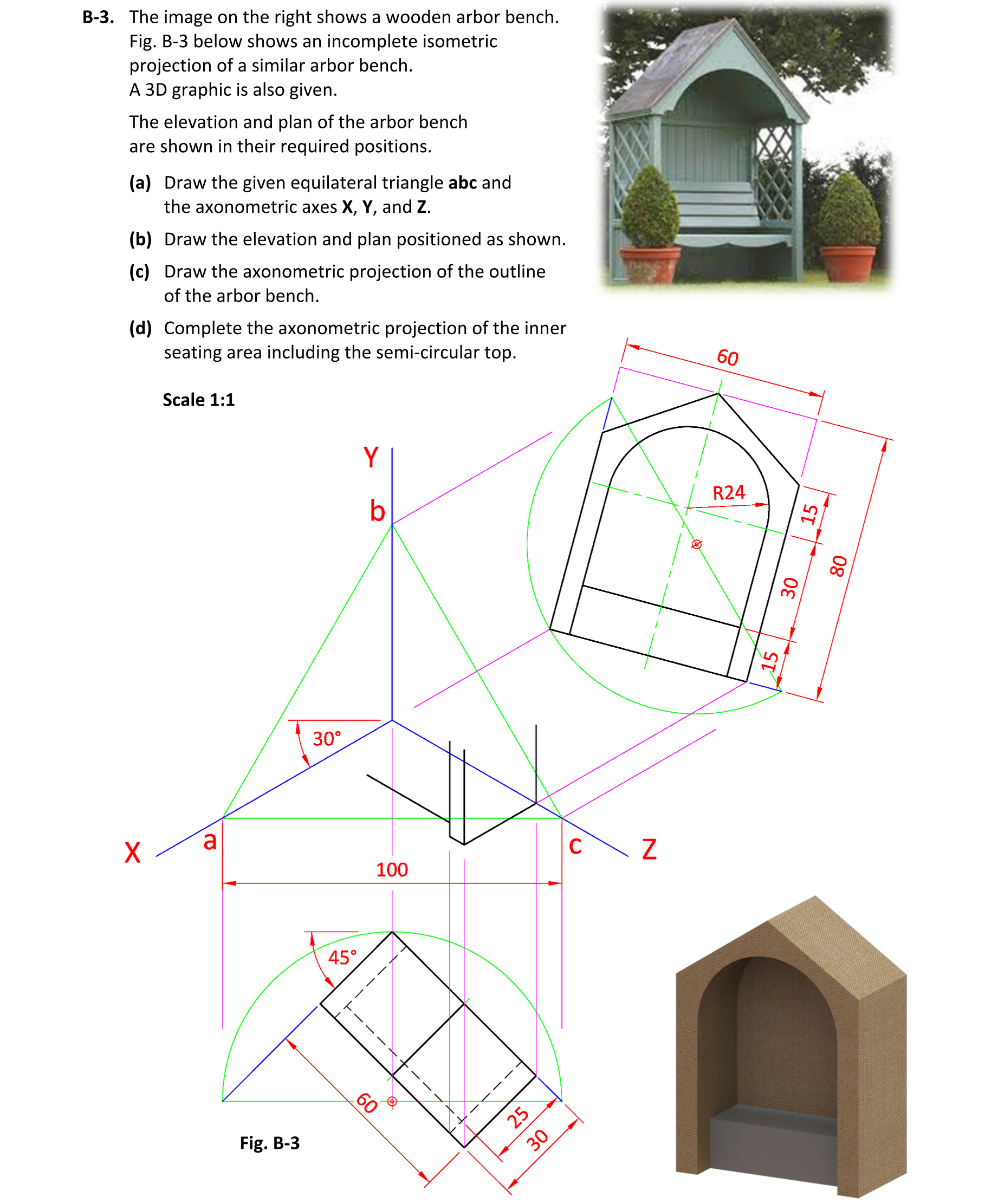

Question d3e6404d-efd7-4fb5-91b3-df3730ba191c

Marking Scheme

Solution for d3e6404d-efd7-4fb5-91b3-df3730ba191c

2022 - Section B & C - Section B - Question 1

2022Section Section BQ1

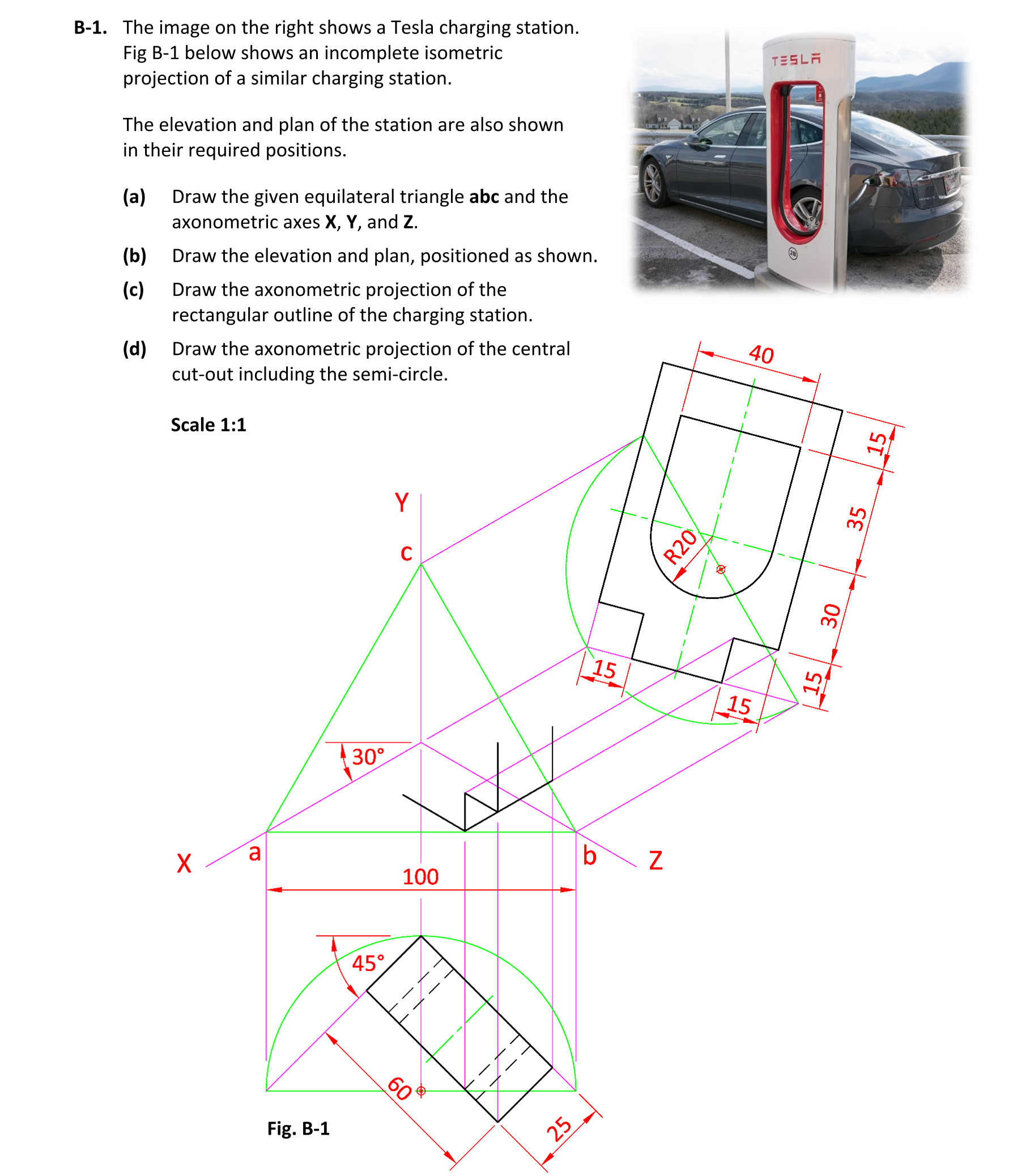

Question e234b0c5-e3fd-4961-a1ad-a2a71f4d2b0d

Marking Scheme

Solution for e234b0c5-e3fd-4961-a1ad-a2a71f4d2b0d

2021 - Section B & C - Section B - Question 2

2021Section Section BQ2

Question 7508ffee-b397-493f-9601-faadee16be8f

Marking Scheme

Solution for 7508ffee-b397-493f-9601-faadee16be8f

2019 - Section B - Section B - Question 2

2019Section Section BQ2

Question 31aa1f4c-a74e-4ee7-96cf-2bef4e215f4f

Marking Scheme

Solution for 31aa1f4c-a74e-4ee7-96cf-2bef4e215f4f

2016 - Section B - Section B - Question 1

2016Section Section BQ1

Question e53bff5e-be53-4dc8-9331-d1ea004e91b3

Marking Scheme

Solution for e53bff5e-be53-4dc8-9331-d1ea004e91b3

2015 - Section B - Section B - Question 2

2015Section Section BQ2

Question 26c680d5-6f2d-45aa-9e08-bd0f120886d1

Marking Scheme

Solution for 26c680d5-6f2d-45aa-9e08-bd0f120886d1

2014 - Section B - Section B - Question 1

2014Section Section BQ1

Question 66e1c2ce-18af-4cc4-9279-e21200b13d06

Marking Scheme

Solution for 66e1c2ce-18af-4cc4-9279-e21200b13d06

2013 - Section B - Section B - Question 2

2013Section Section BQ2

Question 4a890f9c-9bd7-4b66-90d3-c8121e076c7d

Marking Scheme

Solution for 4a890f9c-9bd7-4b66-90d3-c8121e076c7d
