equilibrium diagrams Questions

Leaving Certificate • Engineering • Higher

Total Questions

42

With Solutions

42

Mock Papers

Soon...

Year Range

2007-2024

All Questions (42)

2024 - Question 4 - Part B

Question 09257abd-21bc-49e5-8aec-46e9318fe645

Marking Scheme

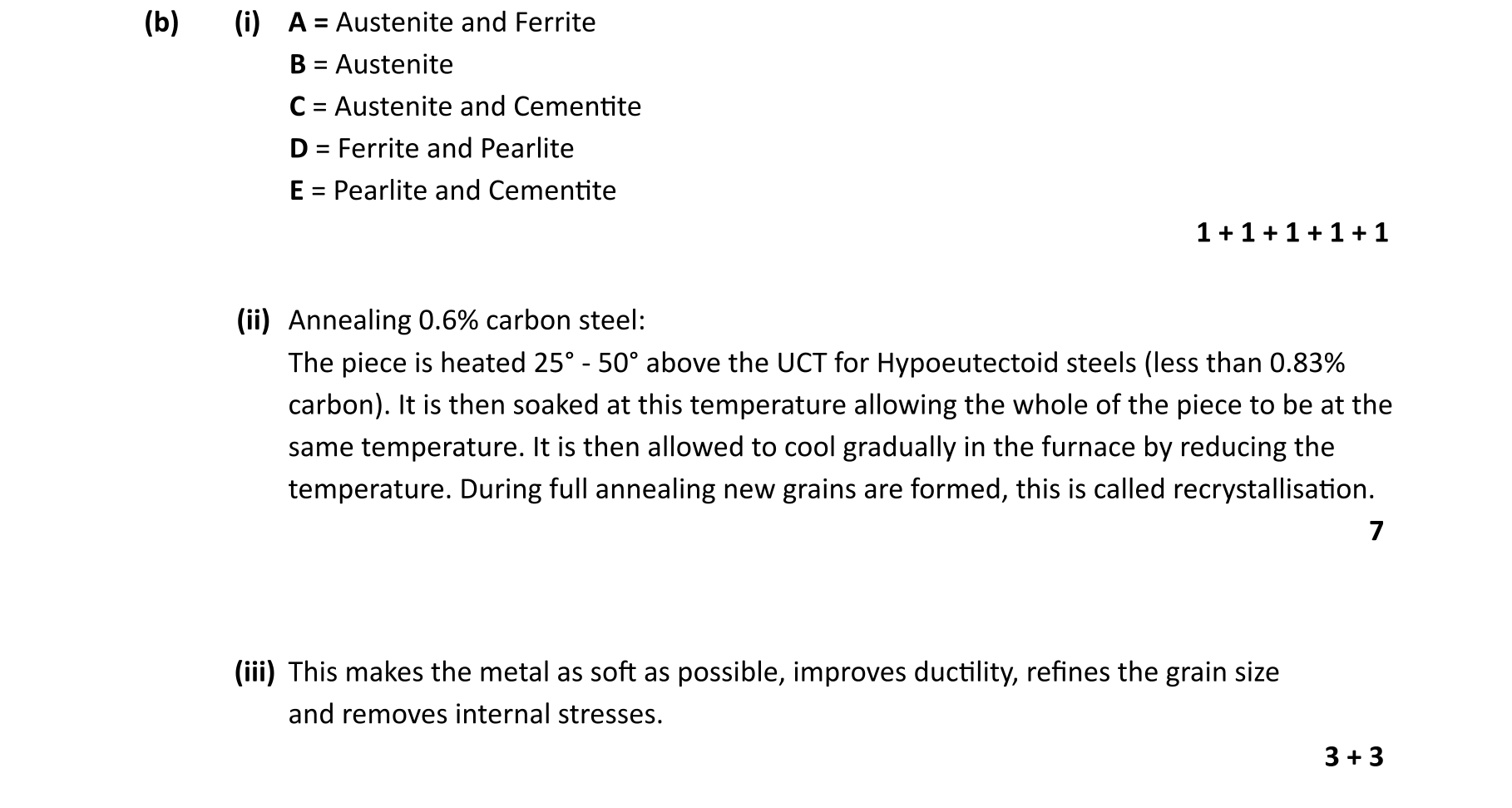

Solution for 09257abd-21bc-49e5-8aec-46e9318fe645

2023 - Deferred Exam Paper - Question 4 - Part B

Question 004a1c28-bb3c-4ba1-bfb6-2b13c4a7f342

Marking Scheme

Solution for 004a1c28-bb3c-4ba1-bfb6-2b13c4a7f342

2023 - Paper - Question 5 - Part B

Question 28b5bafb-e5fc-42de-a512-7d238f27d424

Marking Scheme

Solution for 28b5bafb-e5fc-42de-a512-7d238f27d424

2023 - Deferred Exam Paper - Question 5 - Part B

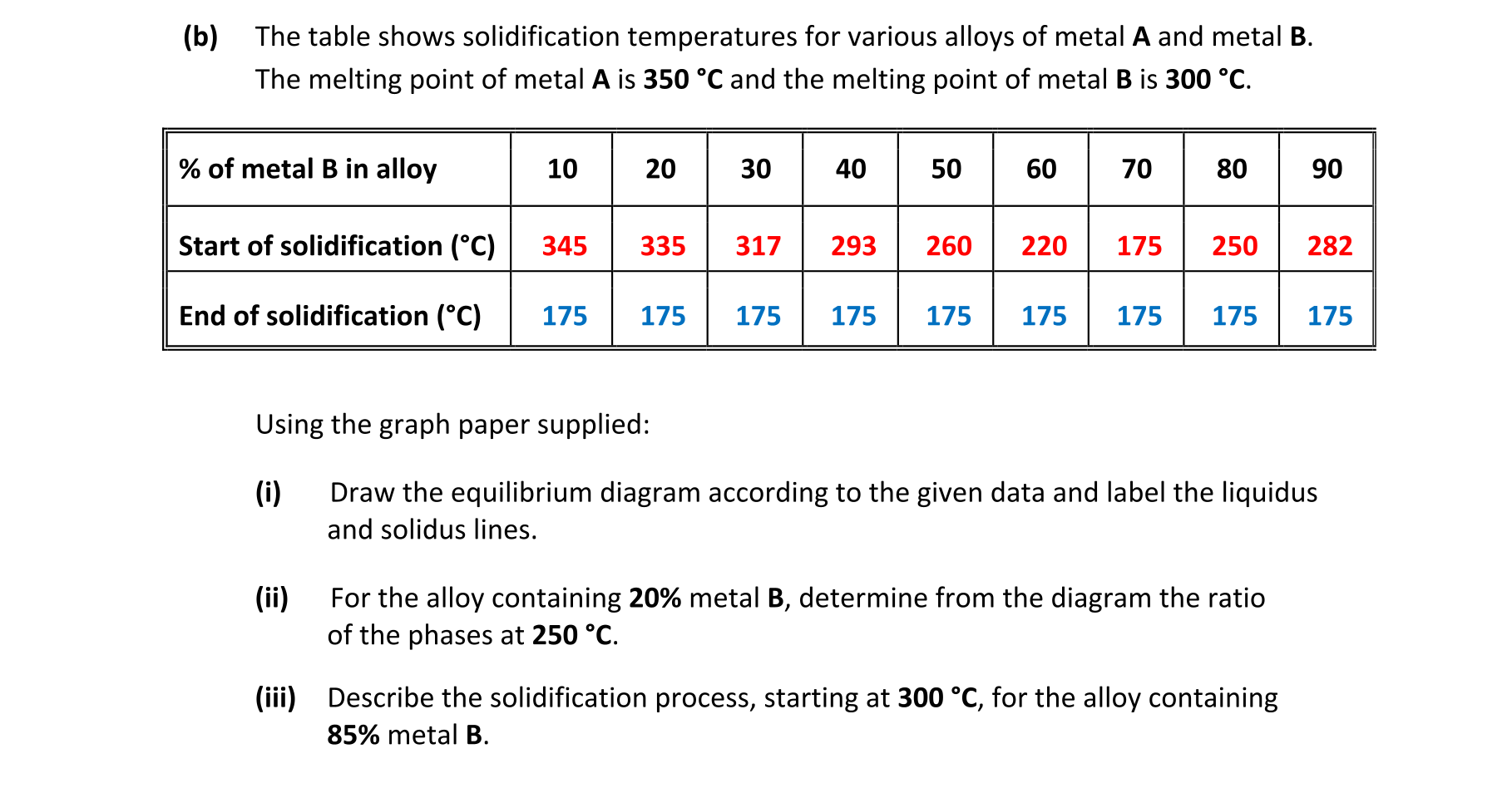

Question 7eb80d3f-b0a9-4b6b-965f-8a0818758862

Marking Scheme

Solution for 7eb80d3f-b0a9-4b6b-965f-8a0818758862

2022 - Deferred Exam Paper - Question 4 - Part A

Question ca86f3b1-9474-49e3-bda5-5ce28e88ca36

Marking Scheme

Solution for ca86f3b1-9474-49e3-bda5-5ce28e88ca36

2022 - Paper - Question 4 - Part B

Question e5dcb5aa-6f64-4231-925e-07863d79be0a

Marking Scheme

Solution for e5dcb5aa-6f64-4231-925e-07863d79be0a

2022 - Deferred Exam Paper - Question 4 - Part B

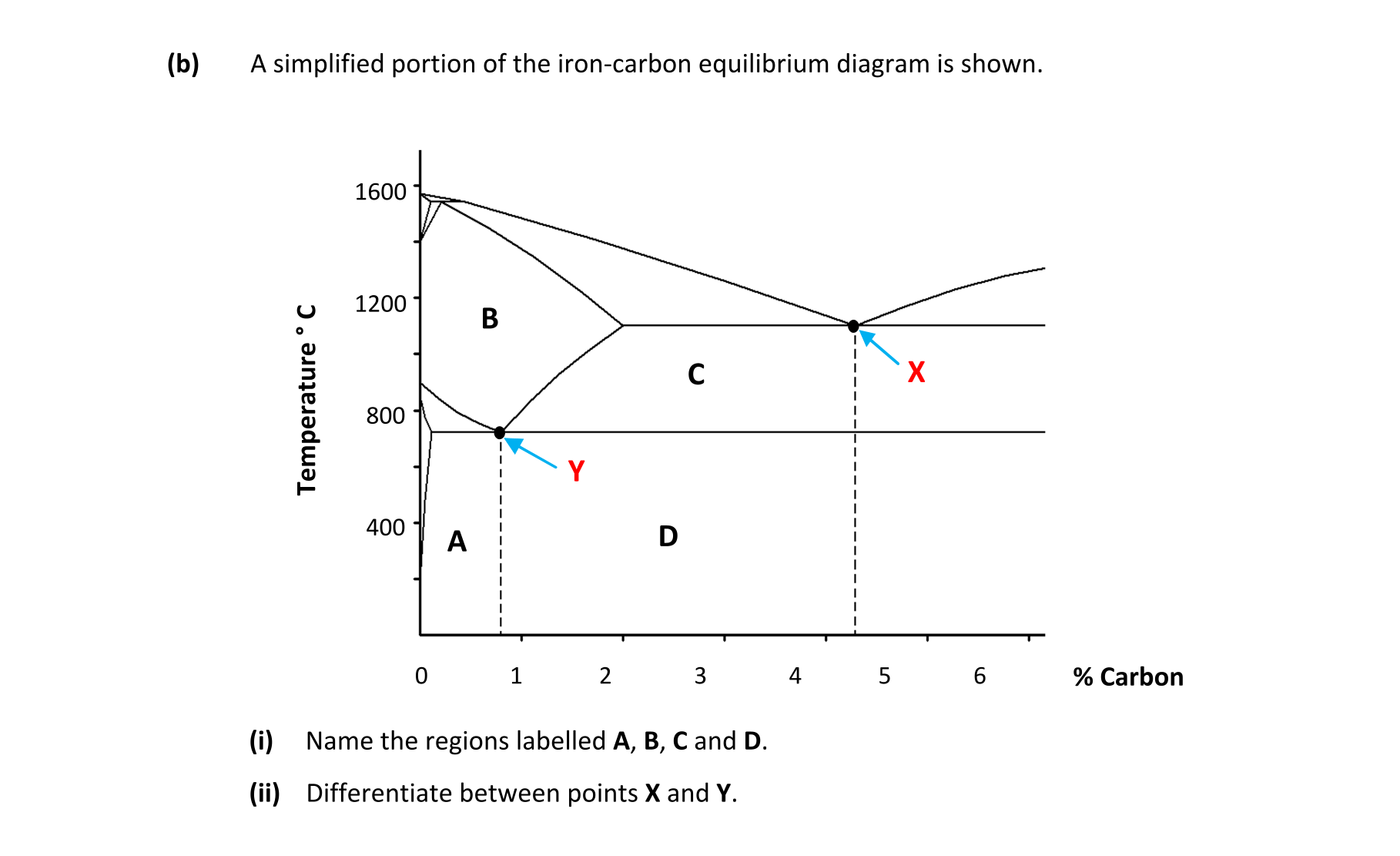

Question be0f10d7-c7fc-4851-824d-8a4e2203bbe3

Marking Scheme

Solution for be0f10d7-c7fc-4851-824d-8a4e2203bbe3

2022 - Paper - Question 5 - Part B

Question b3a1a275-7aab-407e-8bf8-0562f3b601ed

Marking Scheme

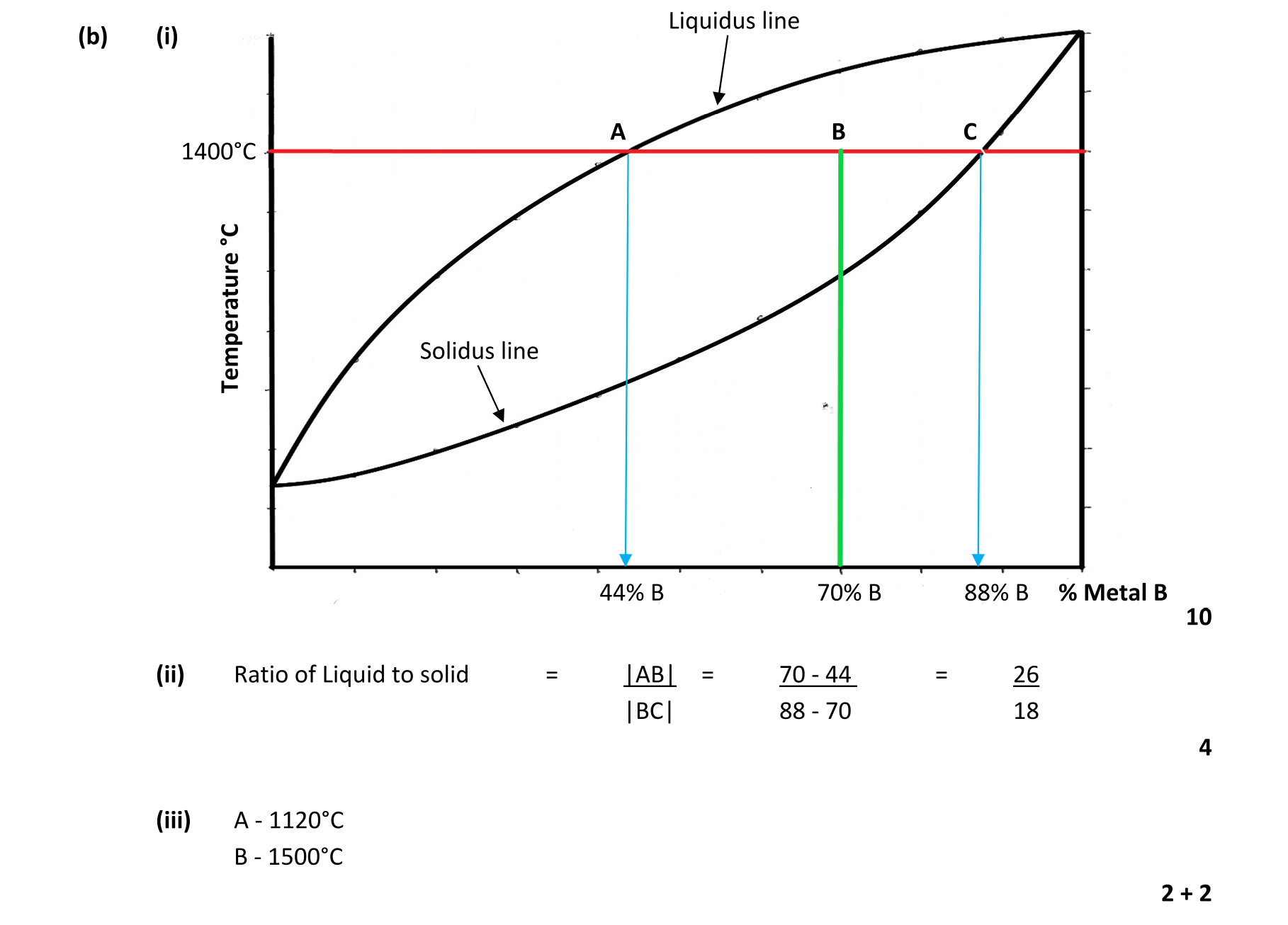

Solution for b3a1a275-7aab-407e-8bf8-0562f3b601ed

2022 - Deferred Exam Paper - Question 5 - Part B

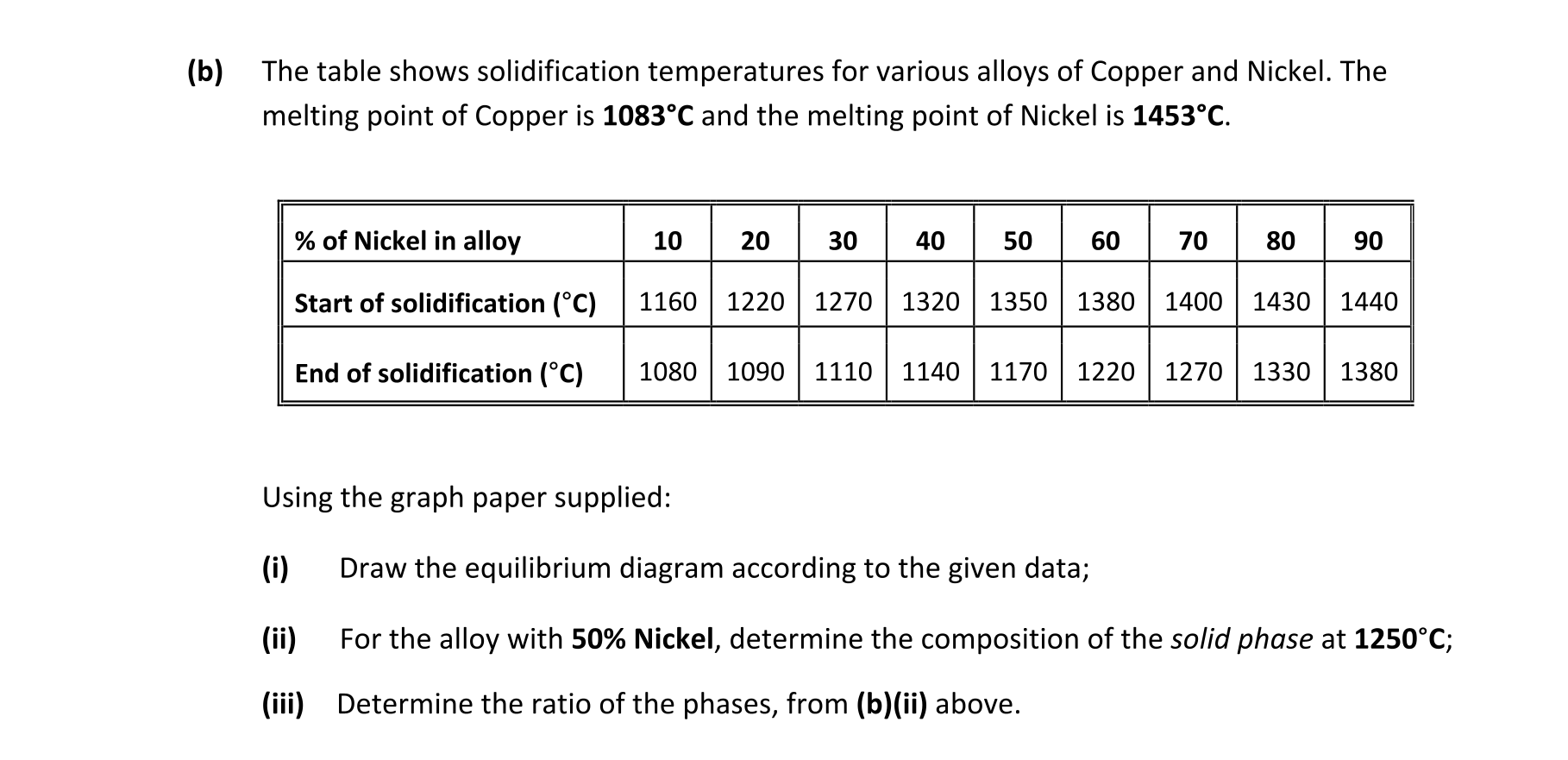

Question 26fe2a10-aaf4-49a3-bbd9-2c9f8a472f4e

Marking Scheme

Solution for 26fe2a10-aaf4-49a3-bbd9-2c9f8a472f4e

2021 - Section B - Question 4 - Part (b)

2021Section Section BQ4

Question 59393c8d-b677-425d-ab7c-f7800e861a69

Marking Scheme

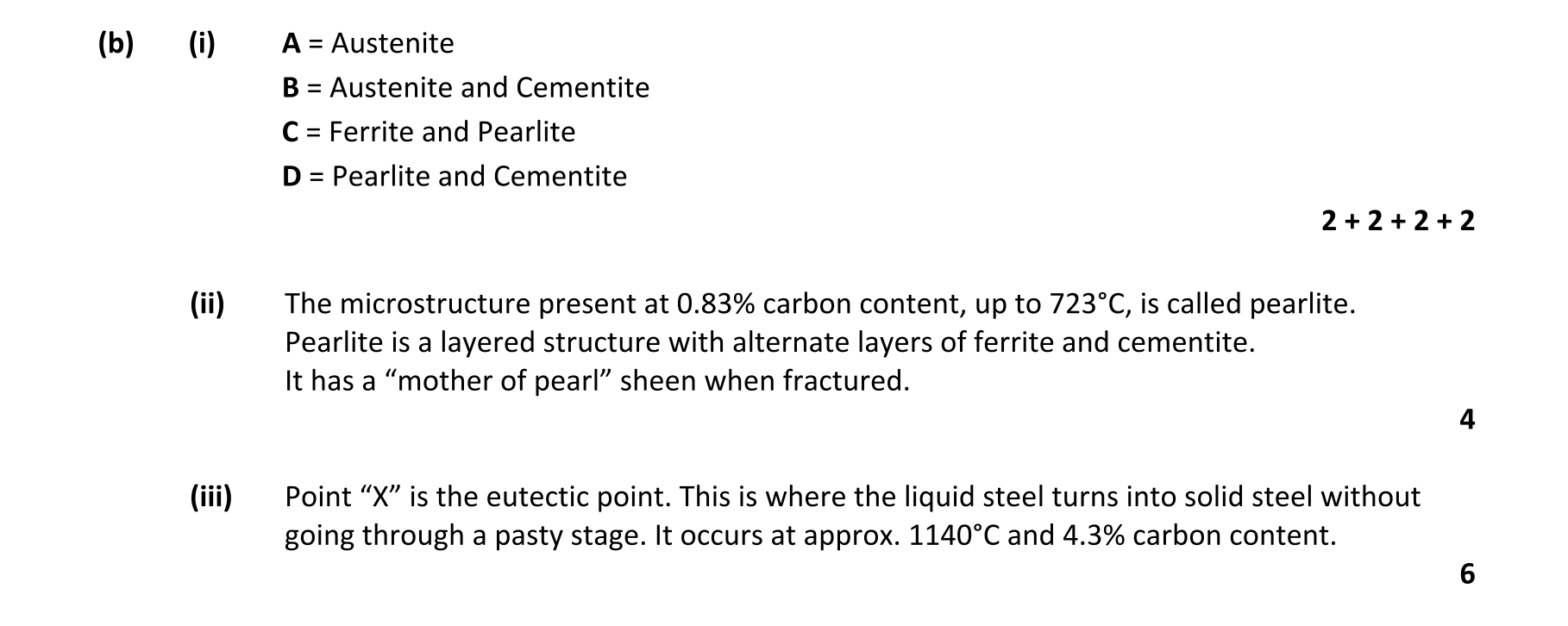

Solution for 59393c8d-b677-425d-ab7c-f7800e861a69

2021 - Section B - Question 4 - Part (c)

2021Section Section BQ4

Question 2b2d4509-01b0-4f30-9760-0673e3aa0ae2

Marking Scheme

Solution for 2b2d4509-01b0-4f30-9760-0673e3aa0ae2

2021 - Section B - Question 5 - Part (b)

2021Section Section BQ5

Question 4eea7865-8c5a-48e9-90d3-fac1fd276724

Marking Scheme

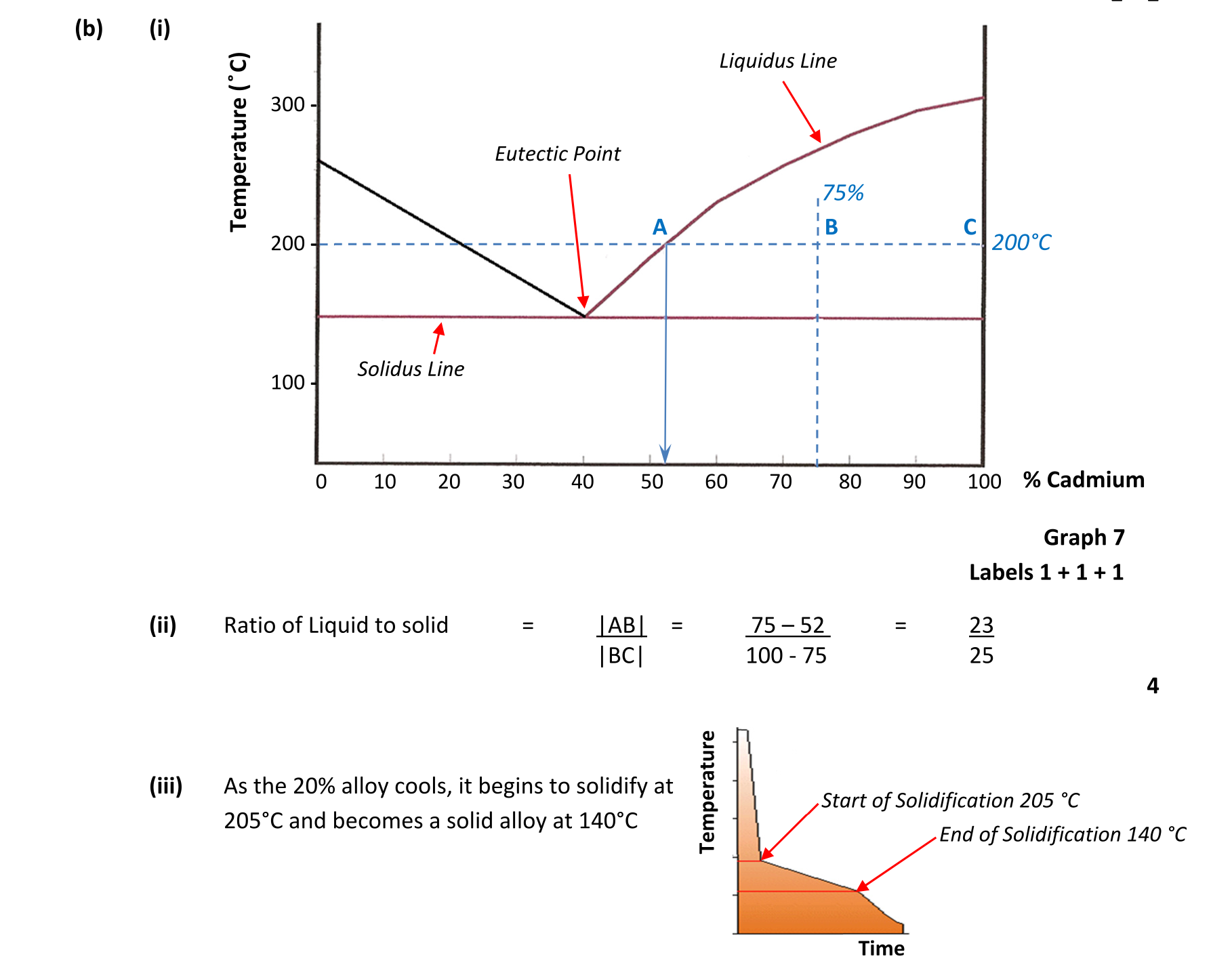

Solution for 4eea7865-8c5a-48e9-90d3-fac1fd276724

2020 - Section B - Question 3 - Part (b)

2020Section Section BQ3

Question e5d7fda5-889c-4ae9-a5ab-1fe48cb8506a

Marking Scheme

Solution for e5d7fda5-889c-4ae9-a5ab-1fe48cb8506a

2020 - Section B - Question 4 - Part (b)

2020Section Section BQ4

Question f8681348-9974-427f-aec3-c52b5c5617c6

Marking Scheme

Solution for f8681348-9974-427f-aec3-c52b5c5617c6

2019 - Section B - Question 3 - Part b

2019Section Section BQ3

Question c1e64936-c06d-41e6-9875-ccc5e1ab1e2e

Marking Scheme

Solution for c1e64936-c06d-41e6-9875-ccc5e1ab1e2e

2019 - Section B - Question 4 - Part b

2019Section Section BQ4

Question dad15594-cf40-4f57-a68b-c96ffe0d4e93

Marking Scheme

Solution for dad15594-cf40-4f57-a68b-c96ffe0d4e93

2018 - Section B - Question 3 - Part b

2018Section Section BQ3

Question 46d5673d-c772-4a38-a173-e9f01f3bfc83

Marking Scheme

Solution for 46d5673d-c772-4a38-a173-e9f01f3bfc83

2018 - Section B - Question 4 - Part b

2018Section Section BQ4

Question 84f23a1b-ceb9-4610-a45b-30381b0fc882

Marking Scheme

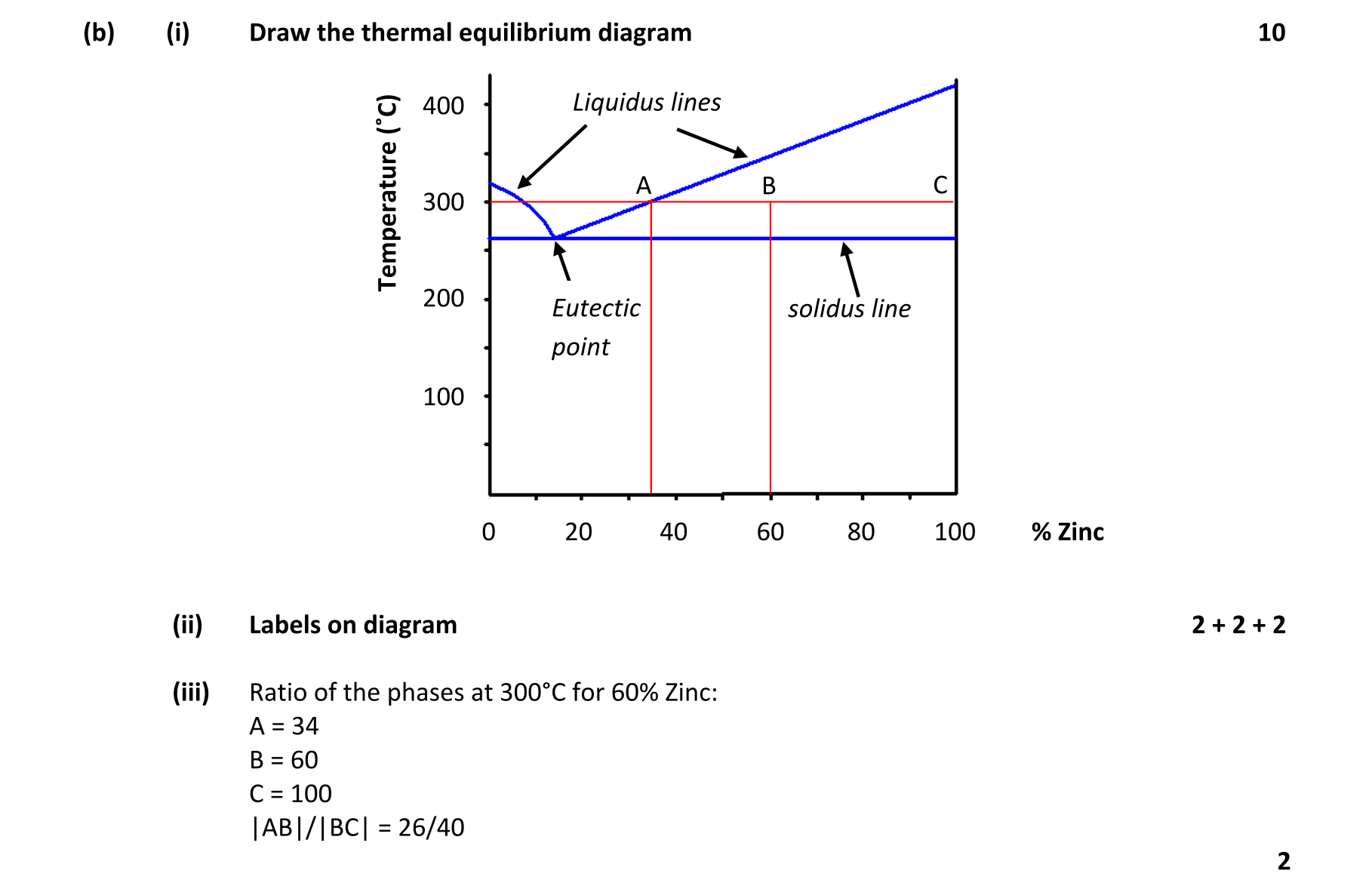

Solution for 84f23a1b-ceb9-4610-a45b-30381b0fc882

2017 - Section B - Question 3 - Part b

2017Section Section BQ3

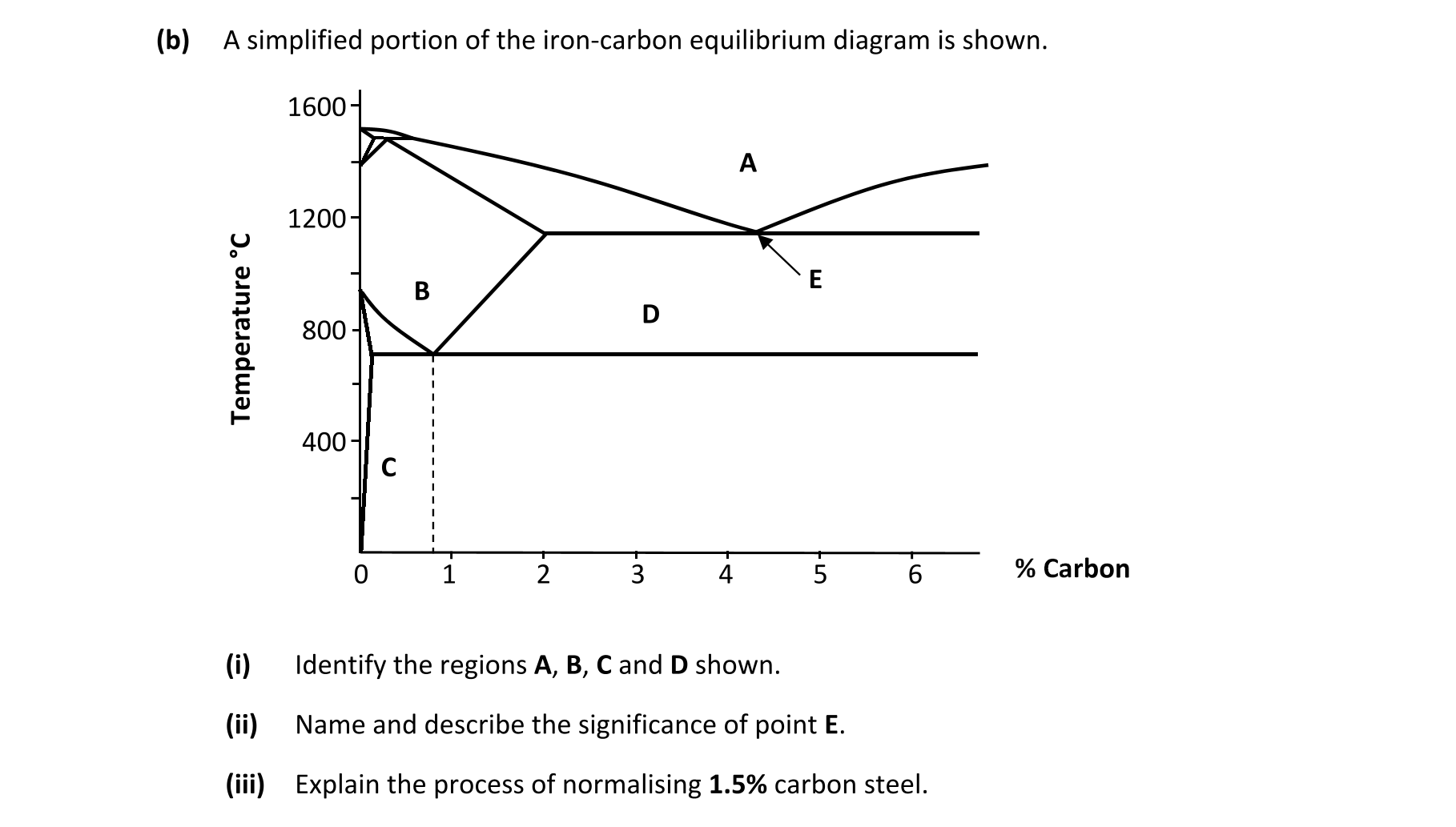

Question 3e30509e-0f0d-4459-ad18-5207640eb68e

Marking Scheme

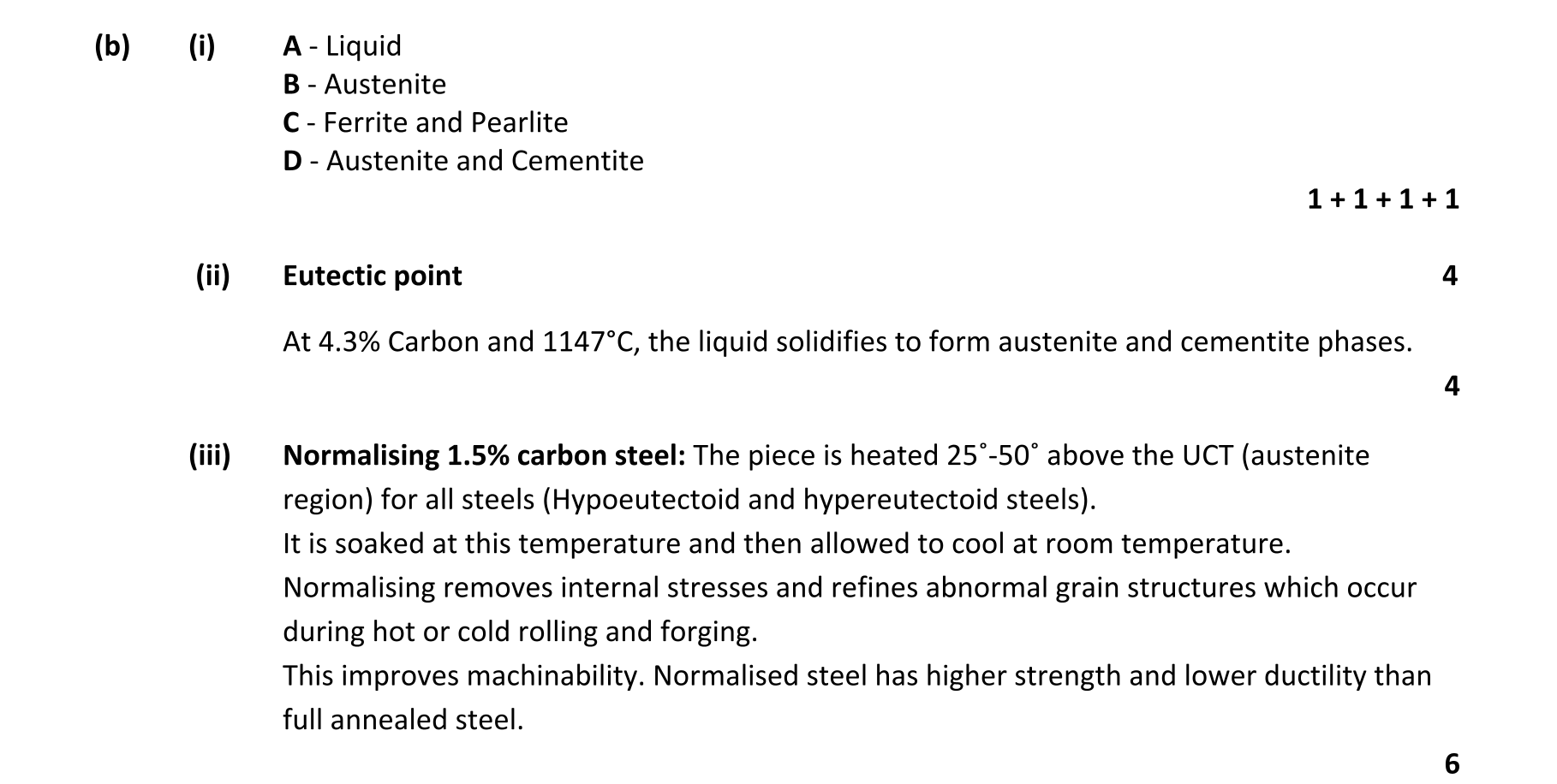

Solution for 3e30509e-0f0d-4459-ad18-5207640eb68e

2017 - Question 4 - Part b

Question 407d5e37-6bfb-4dfa-b70c-4cea90575eec

Marking Scheme

Solution for 407d5e37-6bfb-4dfa-b70c-4cea90575eec

2016 - Section B - Question 3 - Part b

2016Section Section BQ3

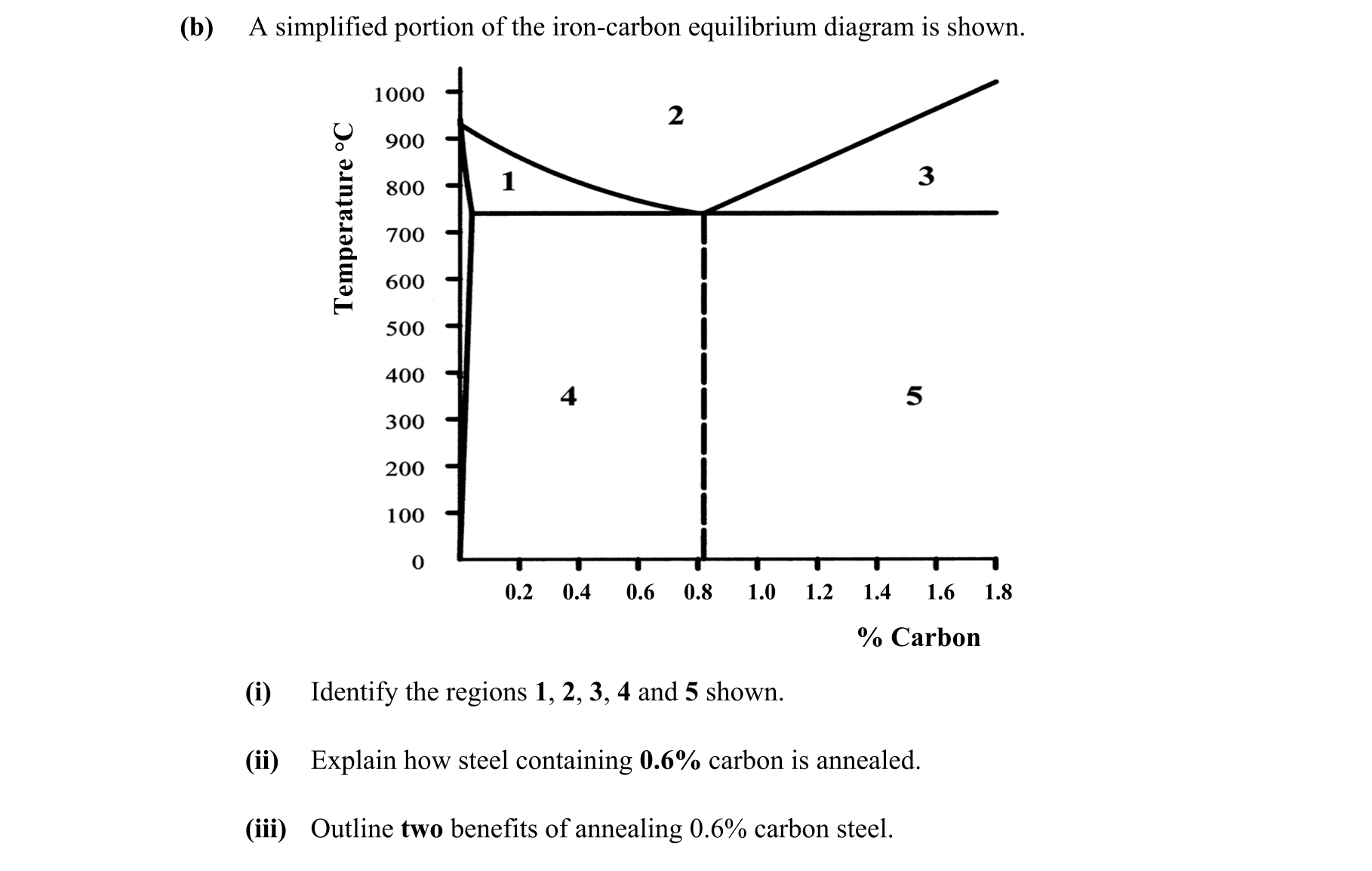

Question ac52950e-1a2d-42d2-804d-71c136ae1e65

Marking Scheme

Solution for ac52950e-1a2d-42d2-804d-71c136ae1e65

2016 - Section B - Question 4 - Part b

2016Section Section BQ4

Question 770fbdb4-2791-4529-95b5-b35c33df24dc

Marking Scheme

Solution for 770fbdb4-2791-4529-95b5-b35c33df24dc

2015 - Section B - Question 3 - Part b

2015Section Section BQ3

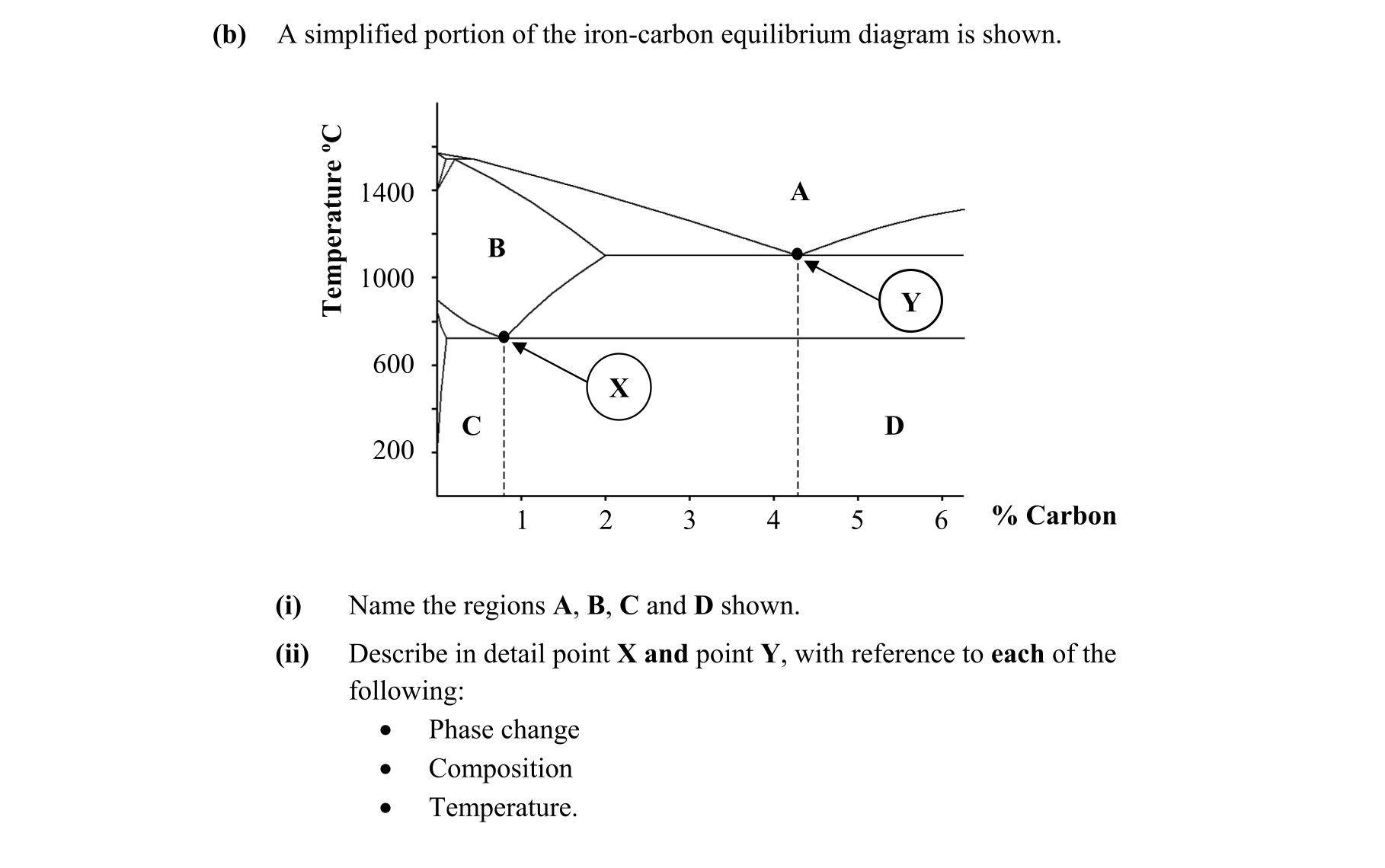

Question 39078e40-0c16-4f29-b1f7-21219816960c

Marking Scheme

Solution for 39078e40-0c16-4f29-b1f7-21219816960c

2015 - Section B - Question 4 - Part b

2015Section Section BQ4

Question 8bb1d7c4-5d4a-4ee2-a854-d12f447b593a

Marking Scheme

Solution for 8bb1d7c4-5d4a-4ee2-a854-d12f447b593a

2014 - Section B - Question 3 - Part b

2014Section Section BQ3

Question e38b5b0a-79b2-4549-a07b-701938e9fbae

Marking Scheme

Solution for e38b5b0a-79b2-4549-a07b-701938e9fbae

2014 - Section B - Question 4 - Part b

2014Section Section BQ4

Question 97013587-6061-46ee-bbb7-71b9f7497411

Marking Scheme

Solution for 97013587-6061-46ee-bbb7-71b9f7497411

2013 - Section B - Question 3 - Part b

2013Section Section BQ3

Question da926a7d-c04f-4dbe-bbc9-8c7f8a3a1733

Marking Scheme

Solution for da926a7d-c04f-4dbe-bbc9-8c7f8a3a1733

2013 - Section B - Question 4 - Part b

2013Section Section BQ4

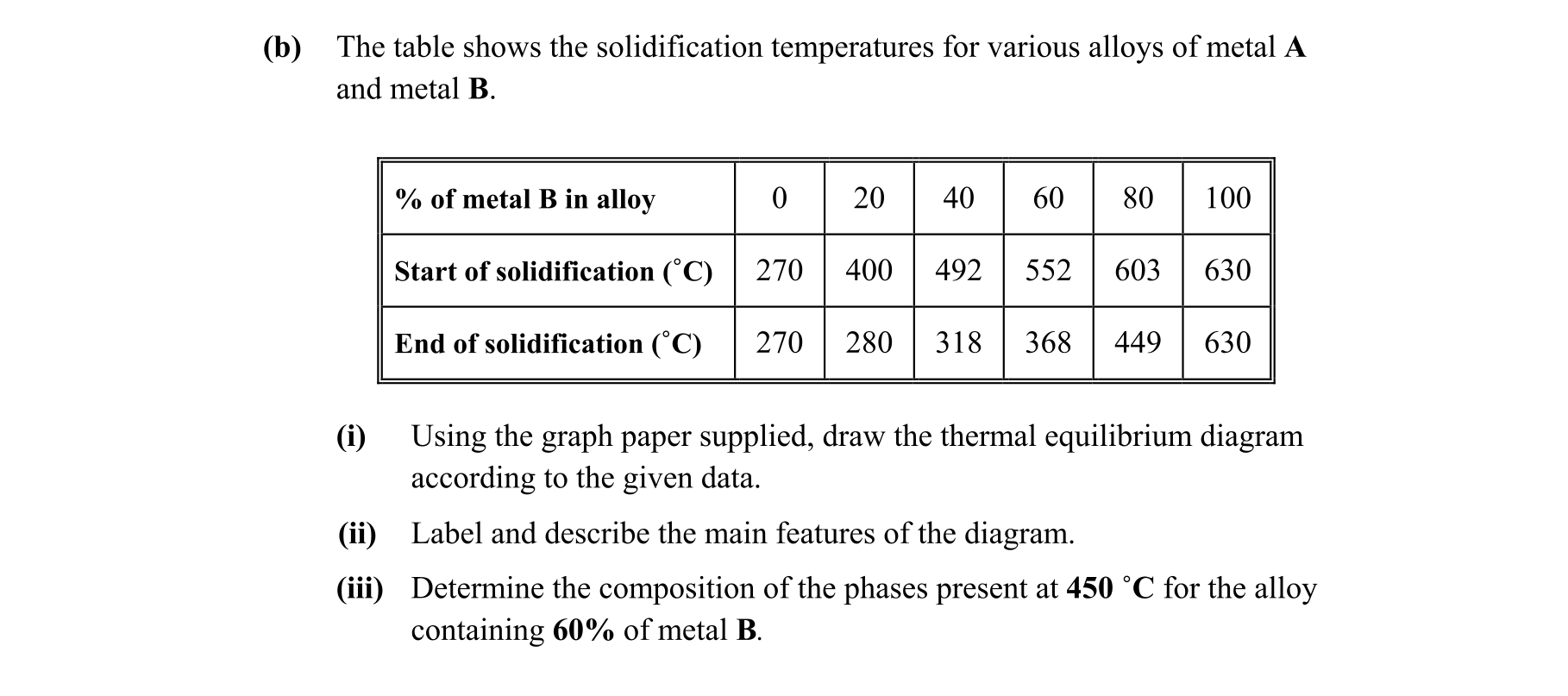

Question 1735b14e-4c7f-4dac-8602-9db9784176c0

Marking Scheme

Solution for 1735b14e-4c7f-4dac-8602-9db9784176c0

2012 - Section B - Question 3 - Part c

2012Section Section BQ3

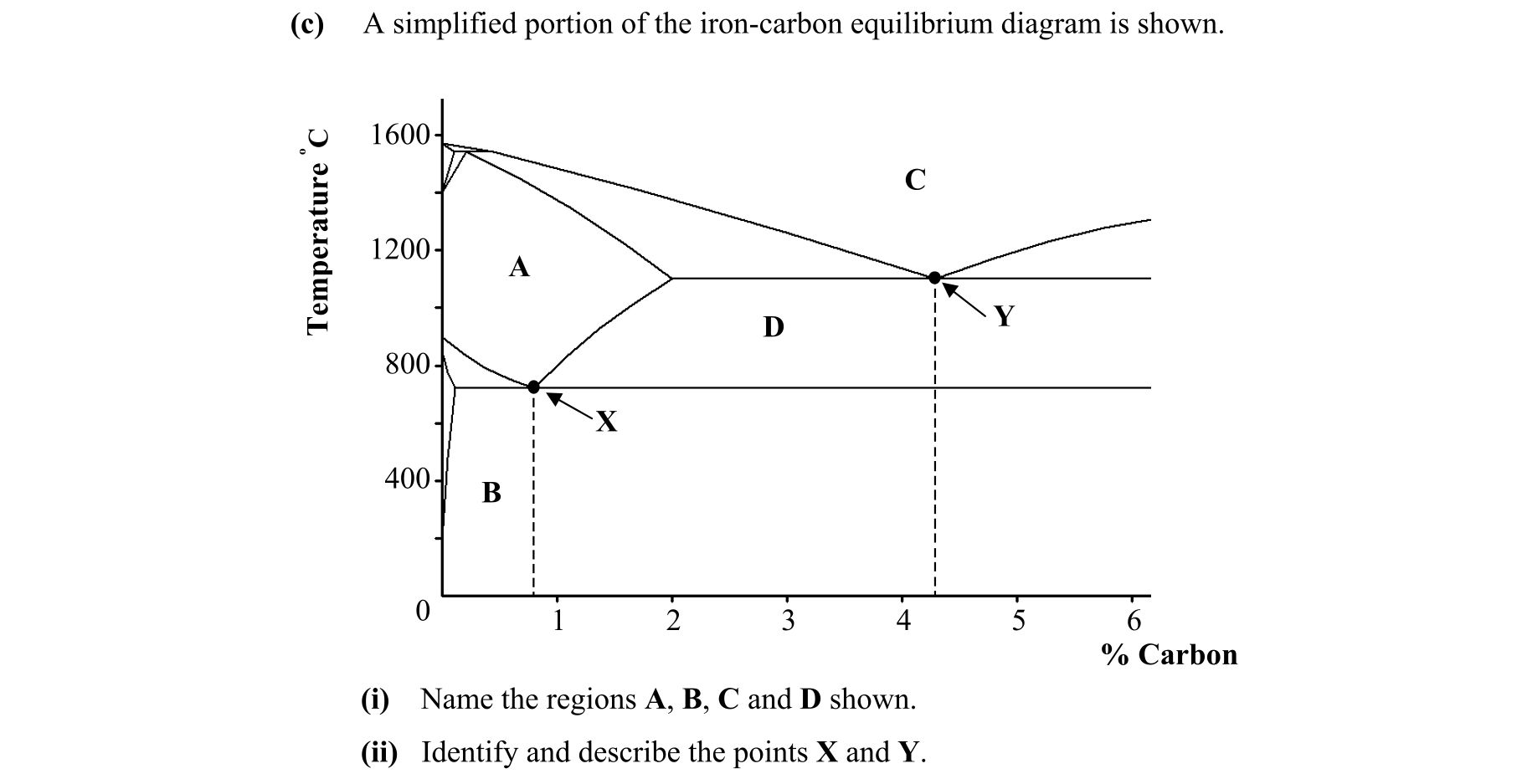

Question 062cc3f5-7e4a-4cb8-87d6-57bb180a0a47

Marking Scheme

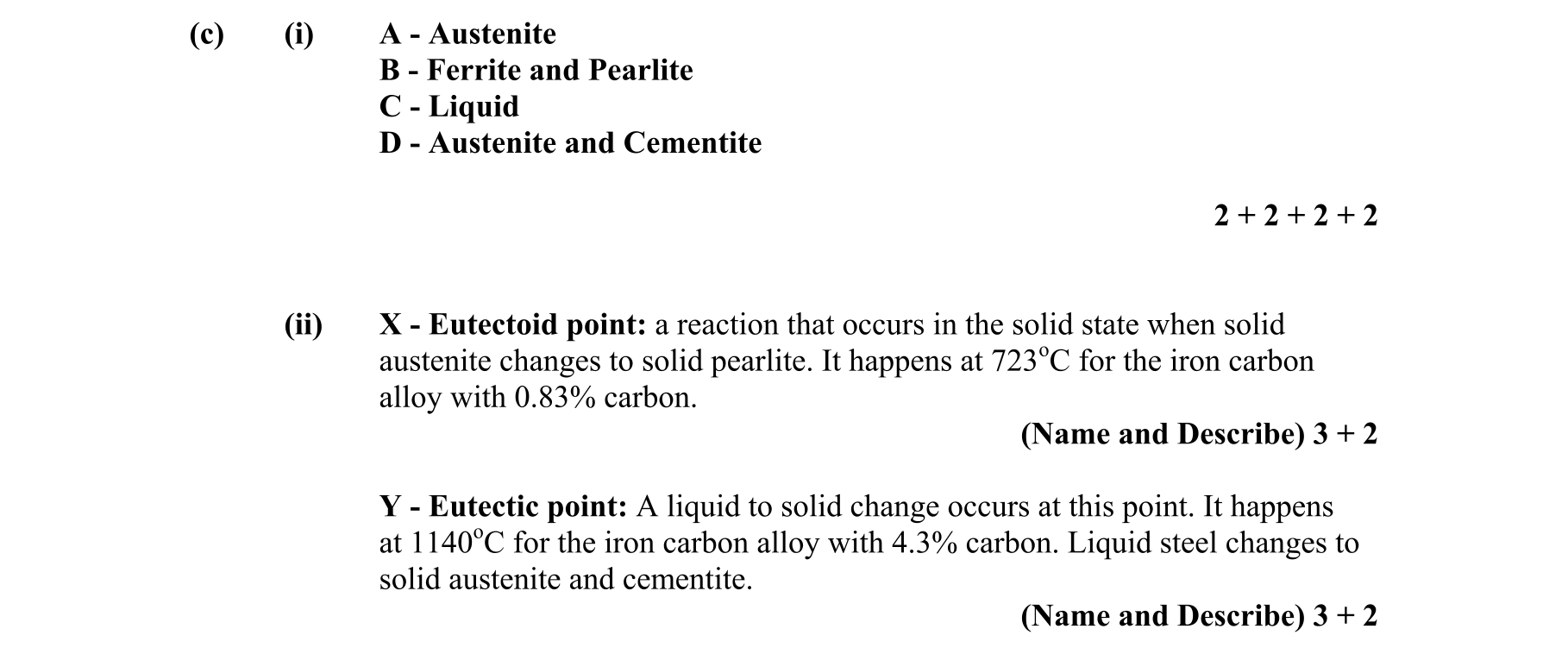

Solution for 062cc3f5-7e4a-4cb8-87d6-57bb180a0a47

2012 - Section B - Question 4 - Part b

2012Section Section BQ4

Question f32d2c89-2dee-440a-ab54-c07bbefb4958

Marking Scheme

Solution for f32d2c89-2dee-440a-ab54-c07bbefb4958

2011 - Section B - Question 3 - Part b

2011Section Section BQ3

Question 5c7b9ef9-a664-445b-ad0c-d14cf2f3a836

Marking Scheme

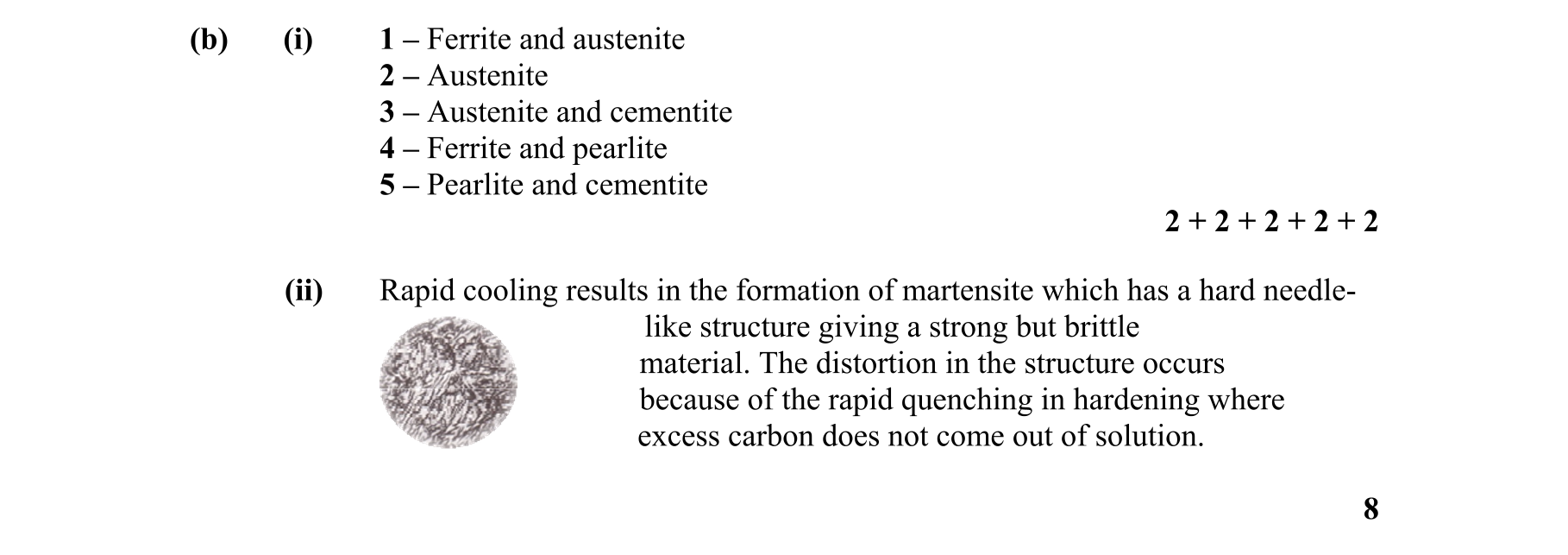

Solution for 5c7b9ef9-a664-445b-ad0c-d14cf2f3a836

2011 - Section B - Question 4 - Part b

2011Section Section BQ4

Question d44860b6-d15f-40fe-908d-89169baf65e2

Marking Scheme

Solution for d44860b6-d15f-40fe-908d-89169baf65e2

2010 - Section A - Question 1 - Part m

2010Section Section AQ1

Question 11382e1c-9217-4a8a-aca4-81307e54c0cb

Marking Scheme

Solution for 11382e1c-9217-4a8a-aca4-81307e54c0cb

2010 - Section B - Question 3 - Part b

2010Section Section BQ3

Question 841e7c17-33a2-493c-af01-5a1afce90508

Marking Scheme

Solution for 841e7c17-33a2-493c-af01-5a1afce90508

2010 - Section B - Question 4 - Part b

2010Section Section BQ4

Question 21865850-74e4-4d13-a474-32cf556bfabe

Marking Scheme

Solution for 21865850-74e4-4d13-a474-32cf556bfabe

2009 - Section B - Question 3 - Part b

2009Section Section BQ3

Question 3e062d66-d36e-431a-9918-862fb24c3a4d

Marking Scheme

Solution for 3e062d66-d36e-431a-9918-862fb24c3a4d

2009 - Section B - Question 4 - Part b

2009Section Section BQ4

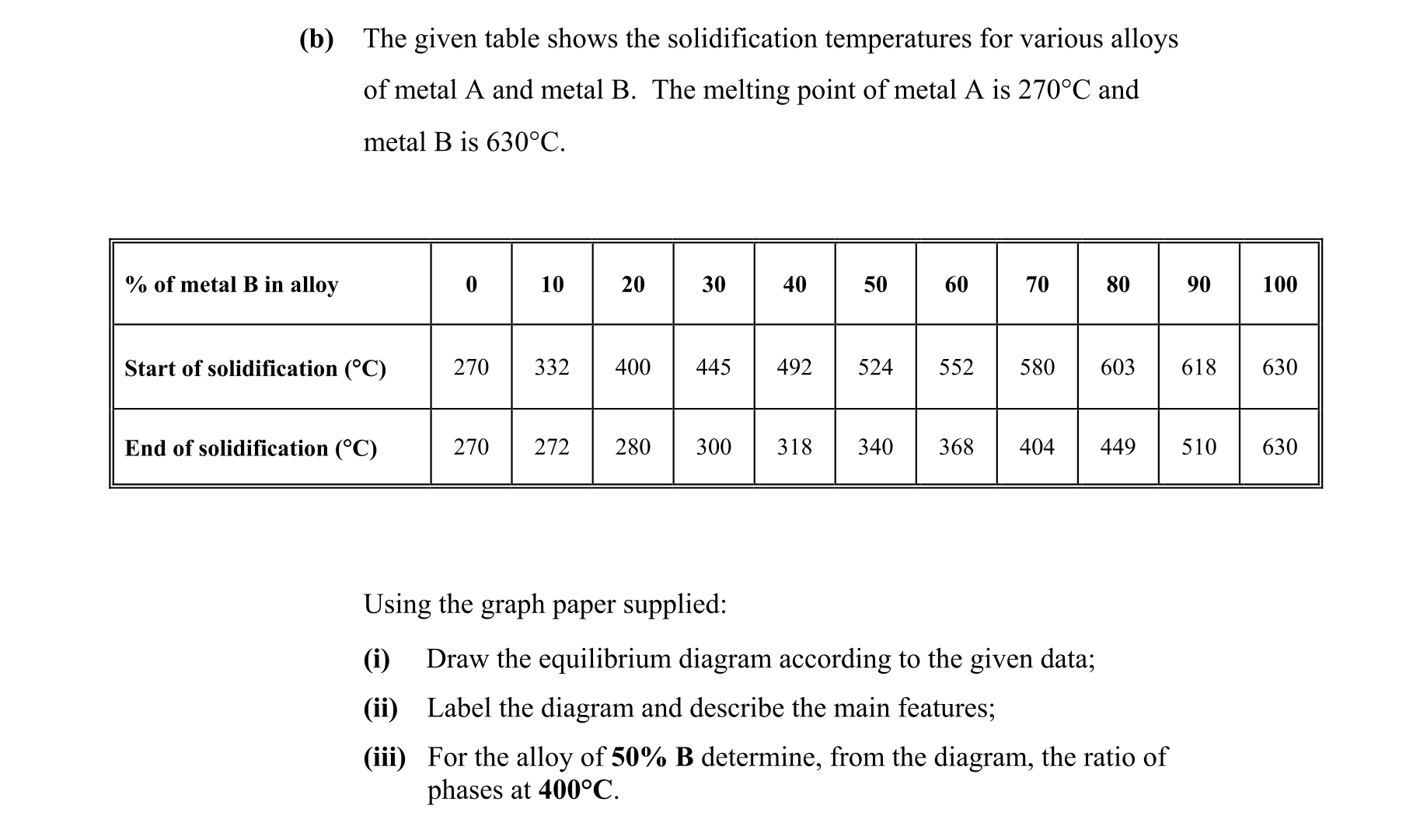

Question cfeb0eb8-f172-4f33-bfa2-6f87fe7c75c7

Marking Scheme

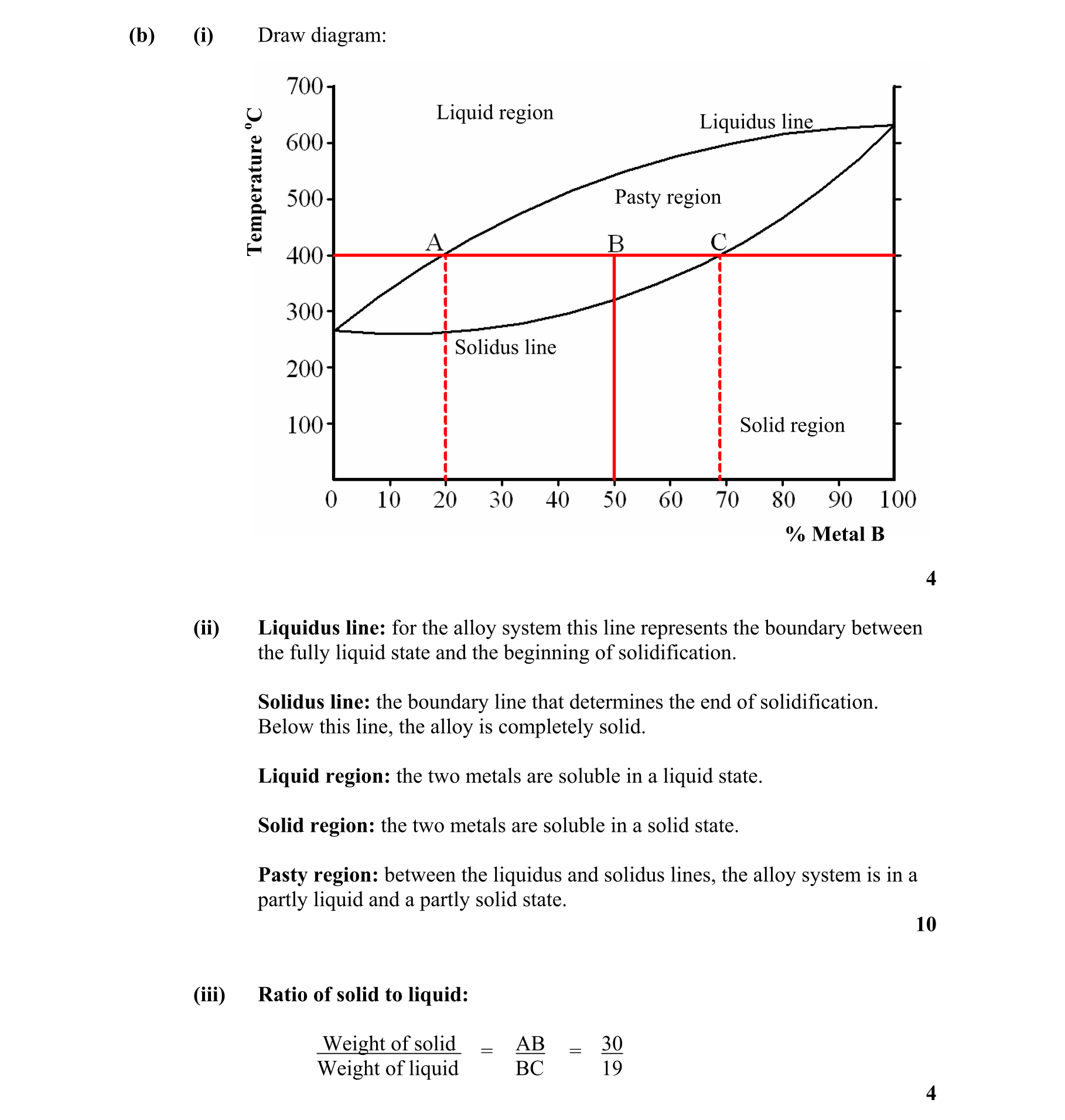

Solution for cfeb0eb8-f172-4f33-bfa2-6f87fe7c75c7

2008 - Section B - Question 3 - Part b

2008Section Section BQ3

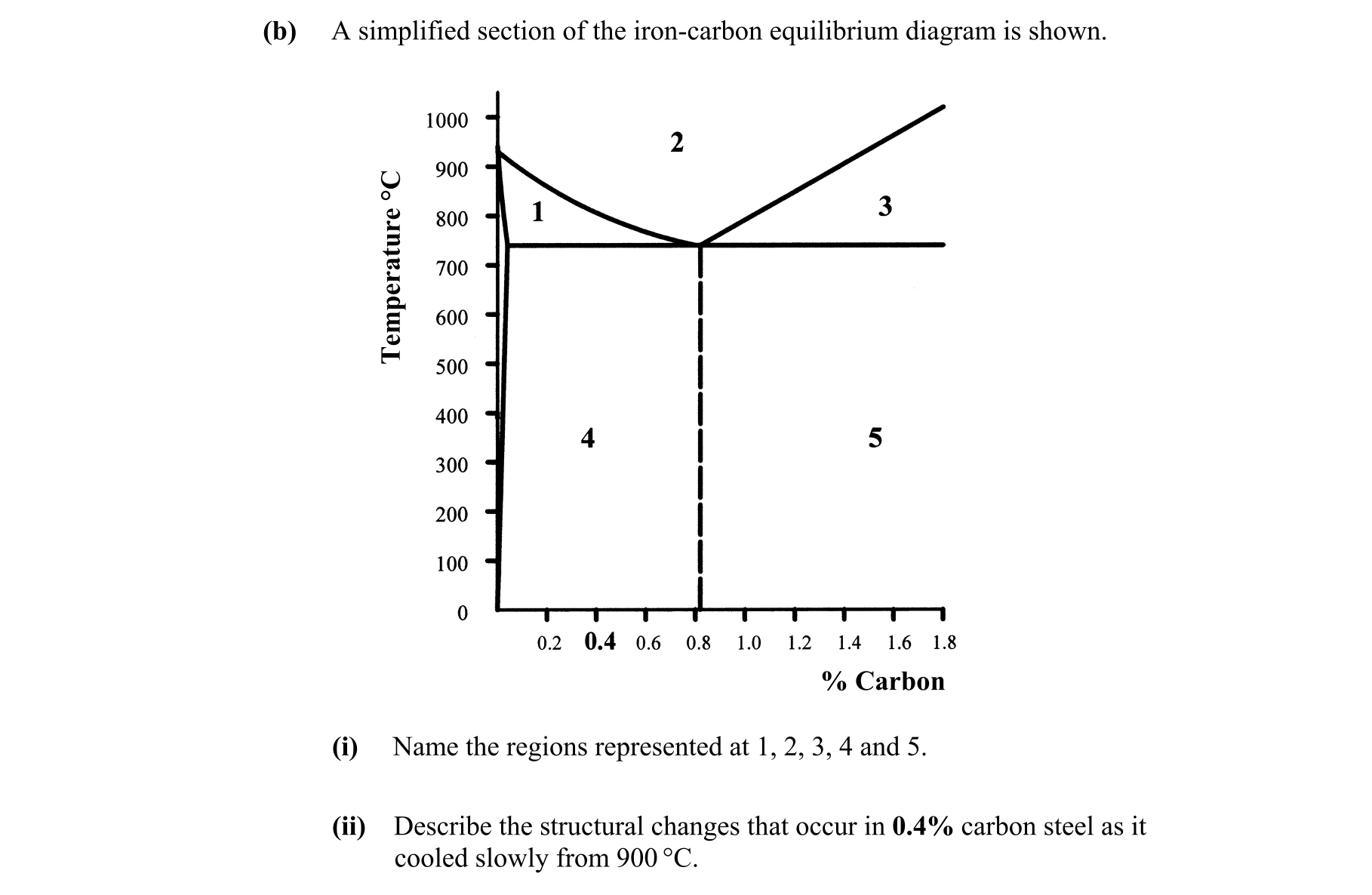

Question a7e26fcb-6de6-4e76-b201-f1ec7b07e789

Marking Scheme

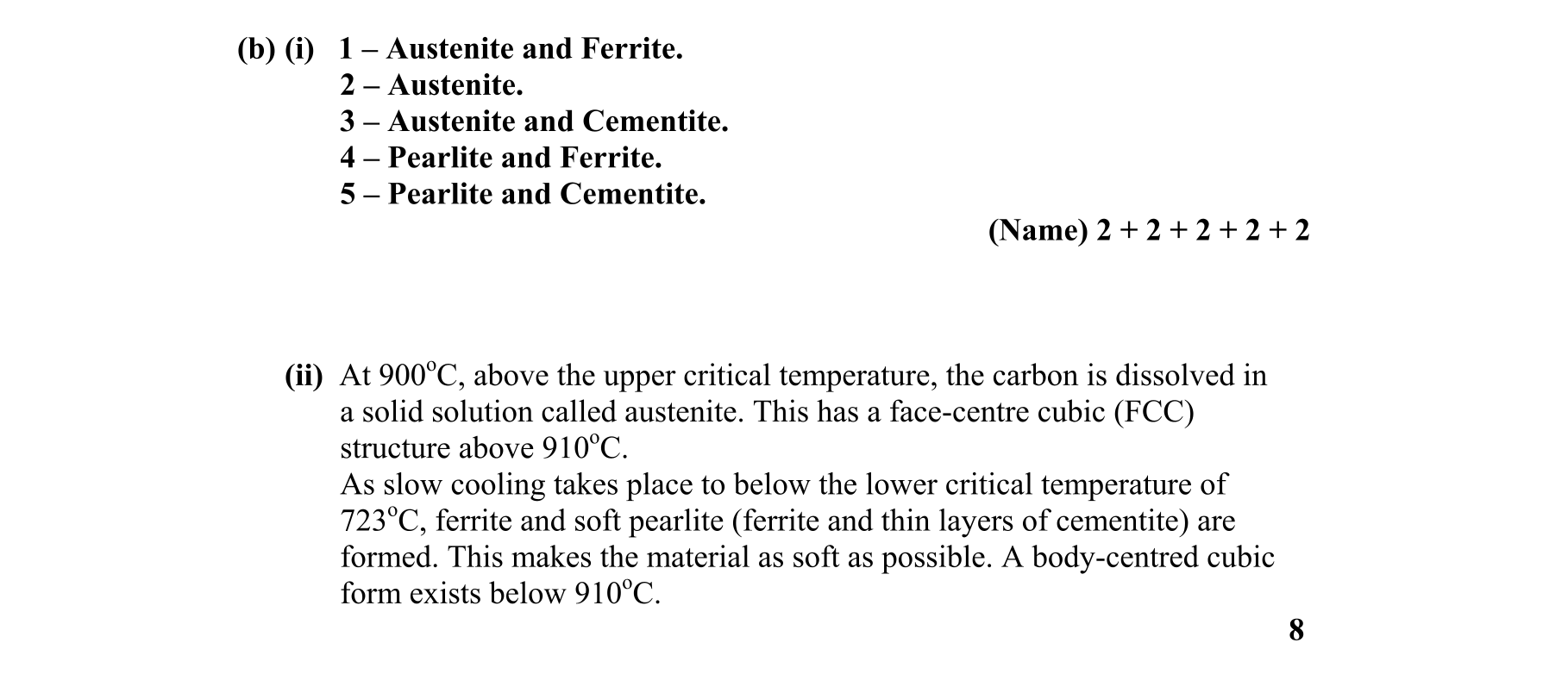

Solution for a7e26fcb-6de6-4e76-b201-f1ec7b07e789

2008 - Section B - Question 4 - Part b

2008Section Section BQ4

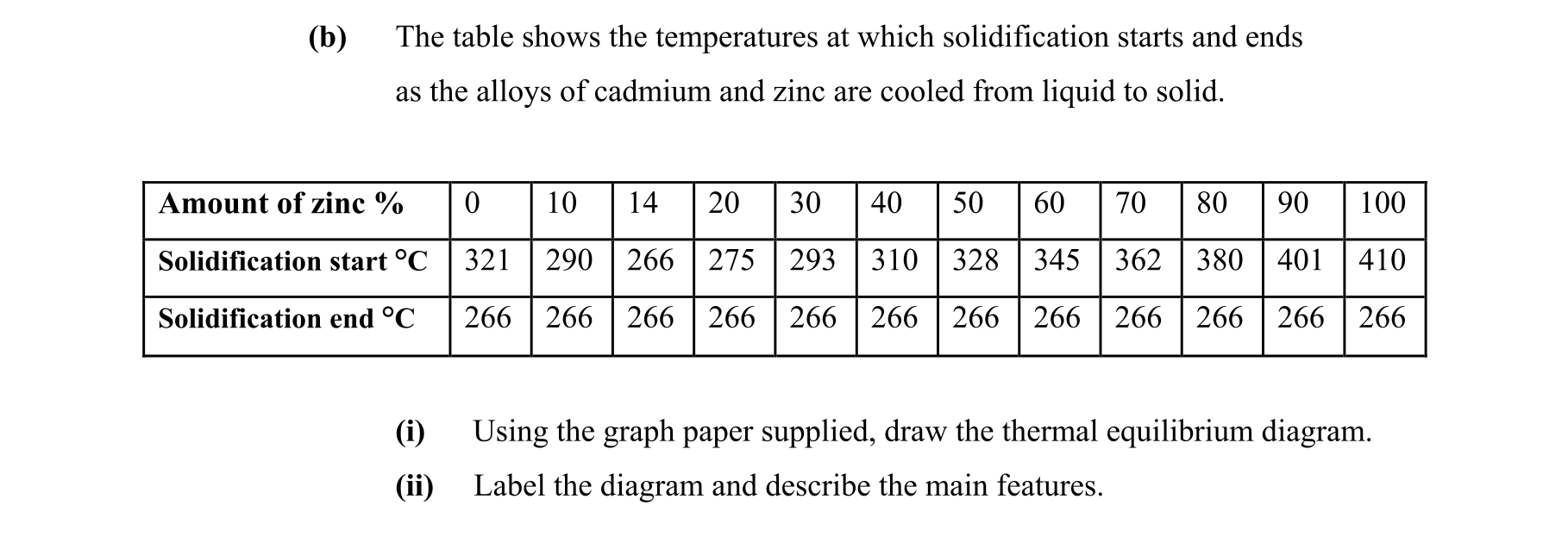

Question 42fc2c9f-2c76-4807-ac63-da5abcc325a4

Marking Scheme

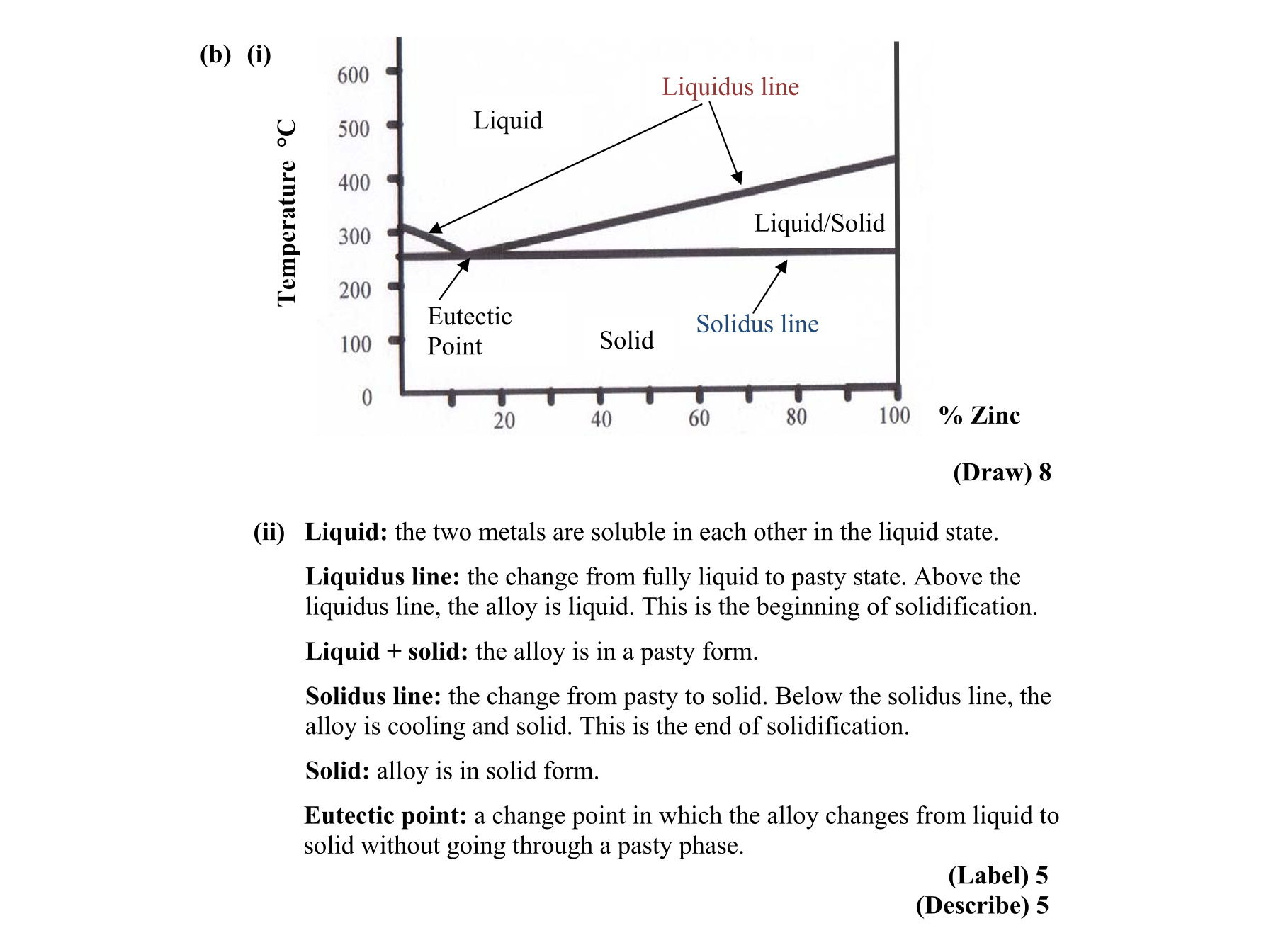

Solution for 42fc2c9f-2c76-4807-ac63-da5abcc325a4

2007 - Section A - Question 1 - Part i

2007Section Section AQ1

Marking Scheme

Solution for 85e941a6-7880-43cc-8669-e5df8bc9cb2e

2007 - Section B - Question 3 - Part b

2007Section Section BQ3

Question 215f4251-c432-4d27-834c-1a49ad9bd7aa

Marking Scheme

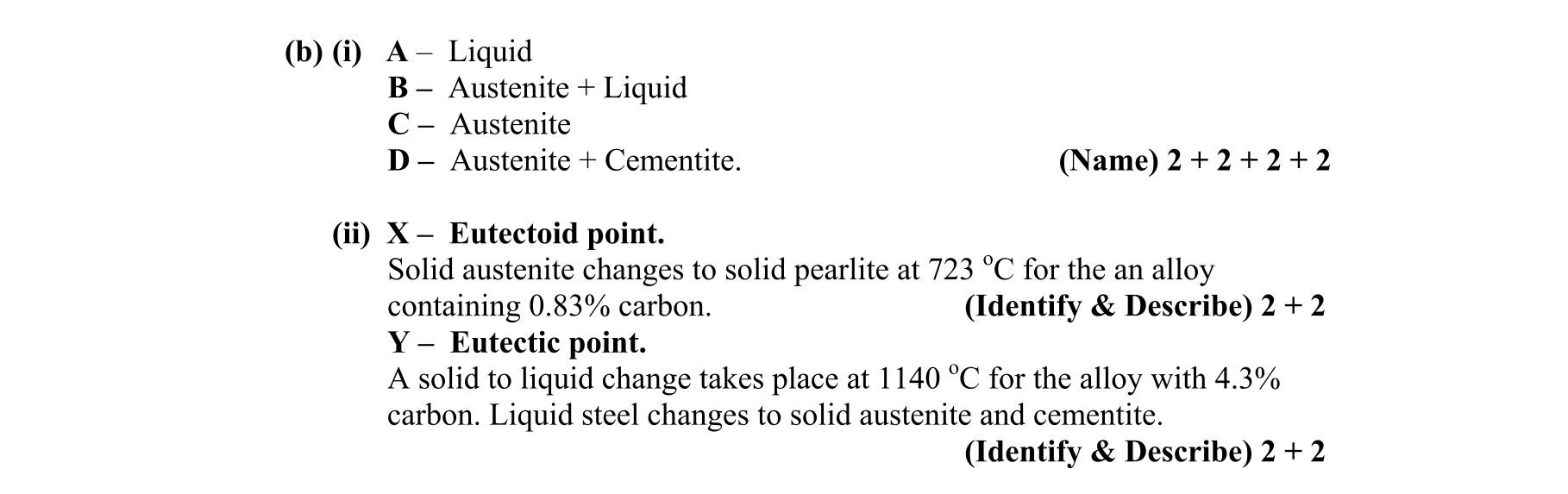

Solution for 215f4251-c432-4d27-834c-1a49ad9bd7aa

2007 - Section B - Question 4 - Part b

2007Section Section BQ4

Question fabc1acb-c93a-457b-b18c-b573323b9878

Marking Scheme

Solution for fabc1acb-c93a-457b-b18c-b573323b9878
